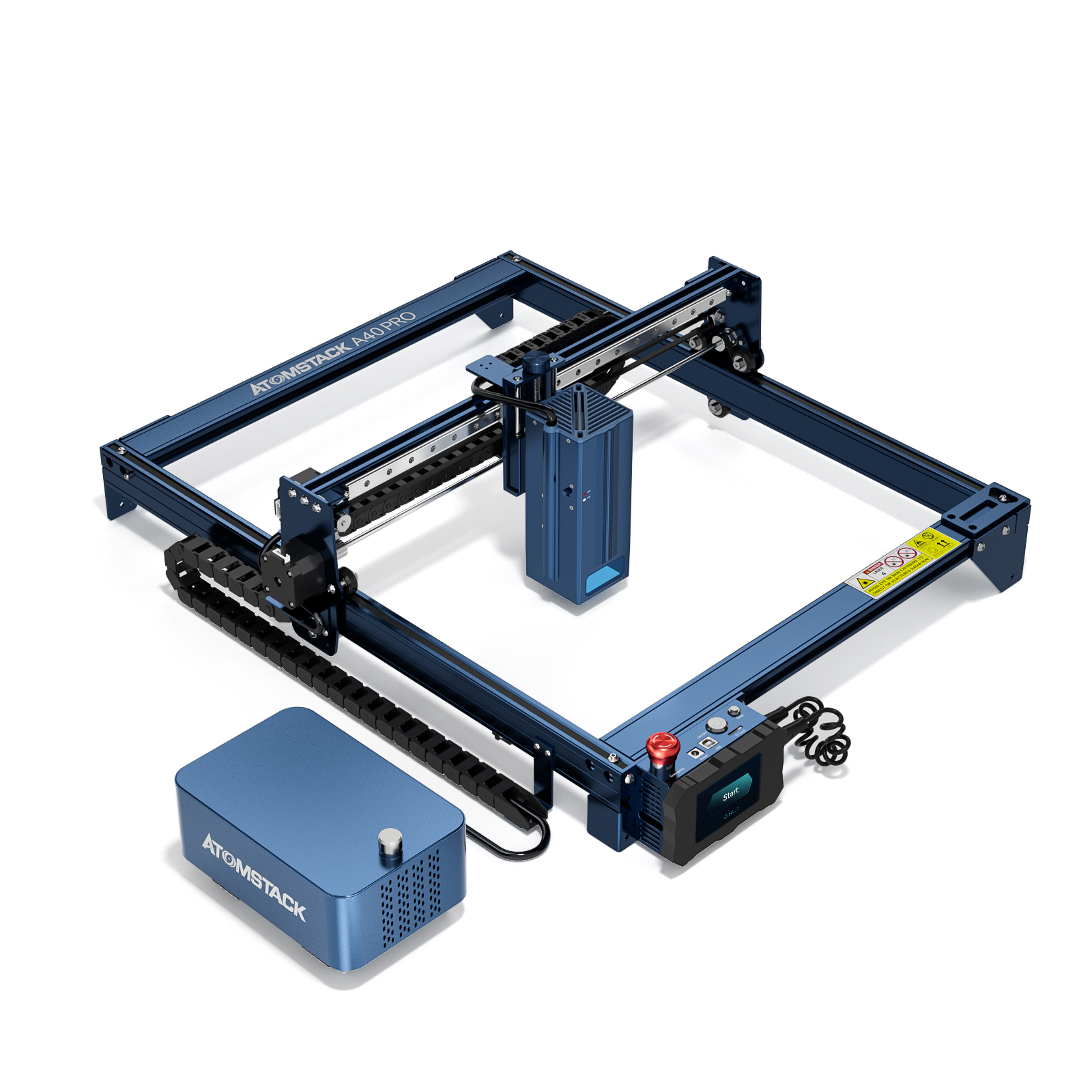

ATOMSTACK A40 Pro Laser Engraver

$1,099.99 USD
$1,699.00 USD
What makes it powerful   Ultra high power As the cutting-edge laser engraving machine, the ATOMSTACK A40 Pro has the...
PLUG
  • US Plug
  • EU Plug
  • UK Plug
Ship From
  • China
  • Europe
  • UK
ecom-no-replace-4D9tstPYkvtrust-s

Complete Your Creative Journey:

Creatorally selected honeycomb working panel for laser engravers
$59.00

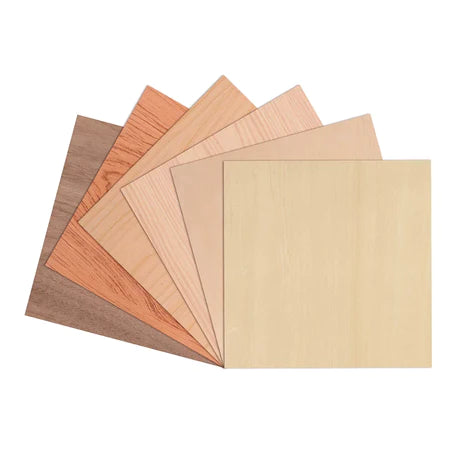

4pcs Birch Plywood 1/8" x 11.8" x 8.46"
$10.50

Description

Reviews

Authorized Certifications

What makes it powerful



Ultra high power

As the cutting-edge laser engraving machine, the ATOMSTACK A40 Pro has the highest 48W optical power in the industry, suitable for professional work and greatly improving work efficiency. It can cut through 18mm basswood, pine, and tung wood, 9mm MDF density board and 0.1mm stainless steel sheet in one cut.

Professional cutting machines

Adopting the most stable 48W high-power laser module currently available. The latest 8x6w laser coupling technology, with a peak power of up to 48W, can cut 20mm basswood, 25mm pine and tung wood, and 12mm MDF density board.

Optical power :48W

19mm basswood

20mm tung wood

9mm mdf density board



New non blocking laser

The new A40 laser is equipped with a tool free focusing module and an air assist system, which eliminates wire interference and is simple and aesthetically pleasing. The patented double layer wind hood design can ensure long-term use without blocking or polluting the lens, greatly improving the lifespan of the laser.

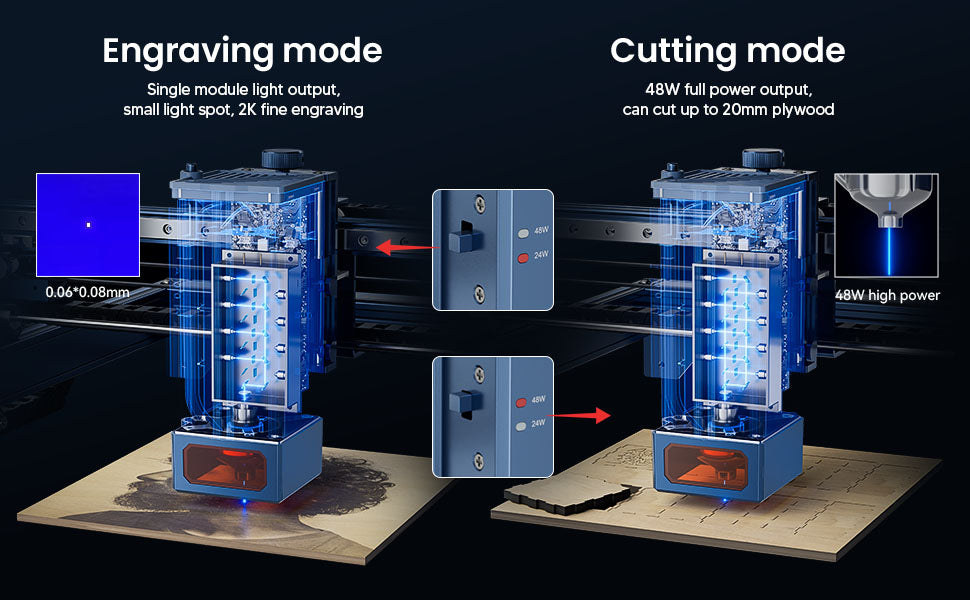

One click switch between carving/cutting modes

The ATOMSTACK A40 Pro adopts a brand new laser design, which can switch between 24W and 48W output power with one physical button. Different modes can be opened for different carving and cutting tasks, allowing for both fine carving and powerful output.

Engraving mode

Single module light output, small light spot, 2K fine engraving

Cutting mode

48W full power output, can cut up to 20mm plywood

Small details, big changes

New sporty structure

Unlike previous machines of the Atomstack, the Atomstack A40Pro adopts a more stable and better structured linear guide X-axis, which ensures stable operation of the A40Pro at a high speed of 500mm/s, and smooth carving and cutting lines without shaking. Can reach 30000mm/min 48W full power output, cut up to 20mm plywood.

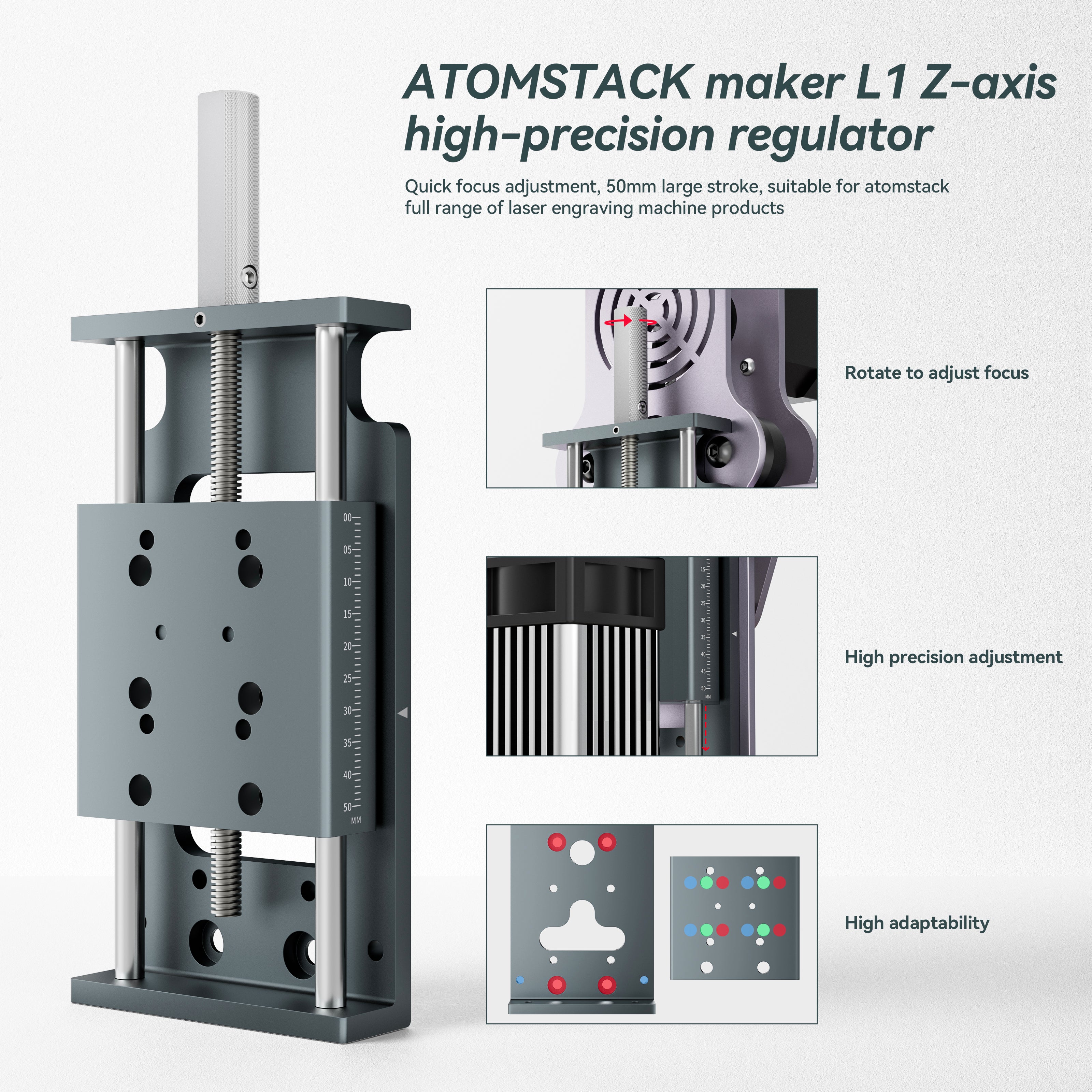

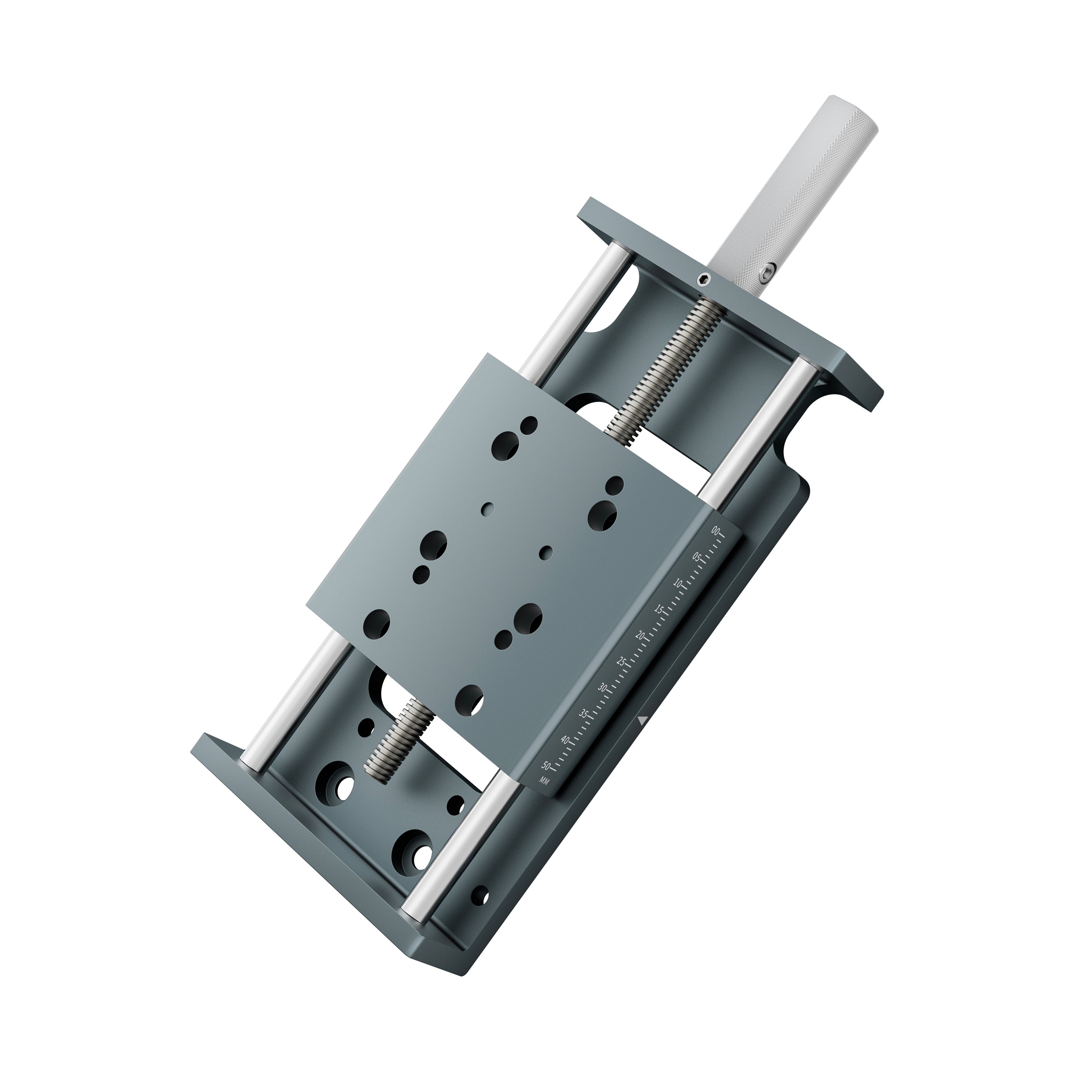

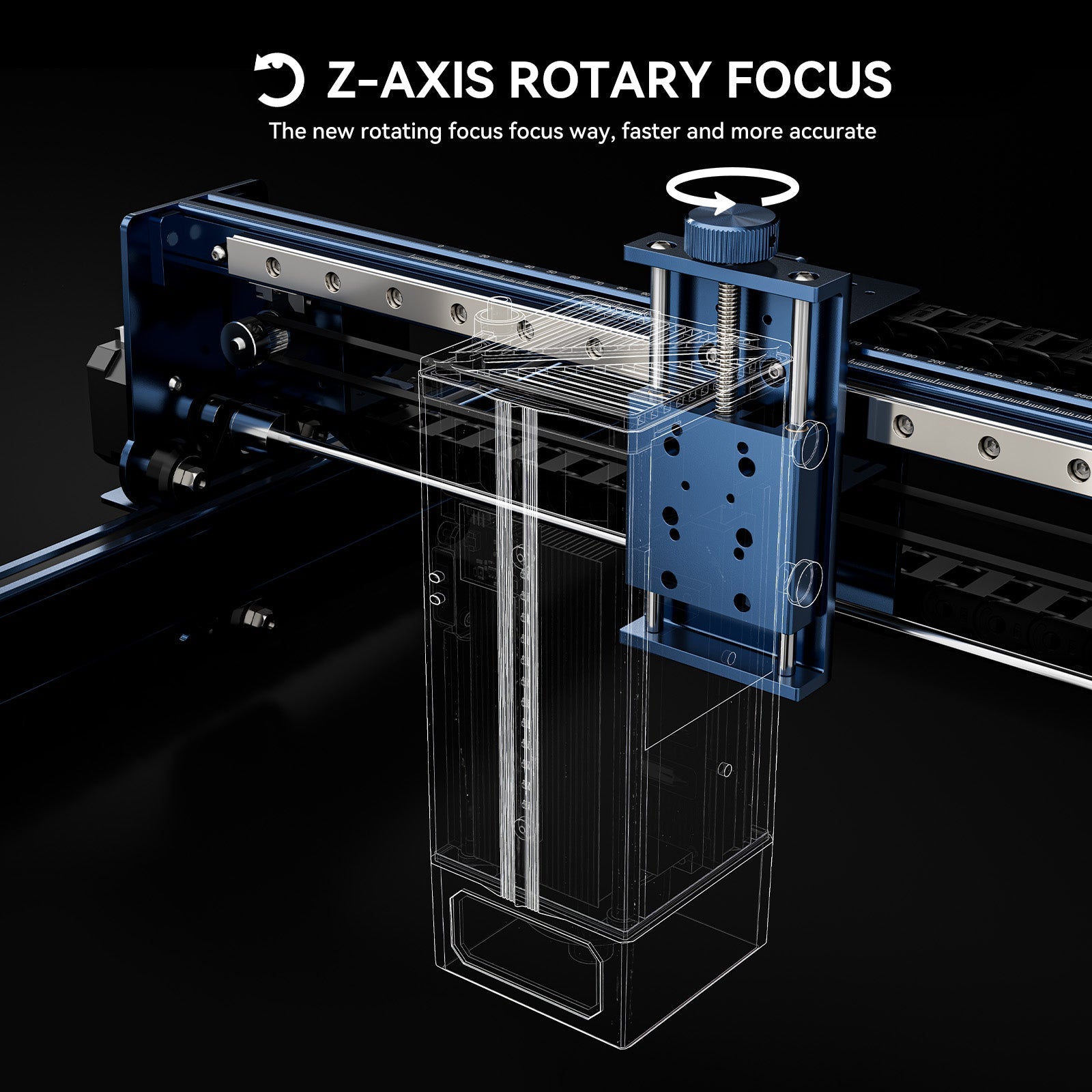

Z-AXIS ROTARY FOCUS

The new rotating focus way, faster and more accurate

More processing stream units

More data processing power

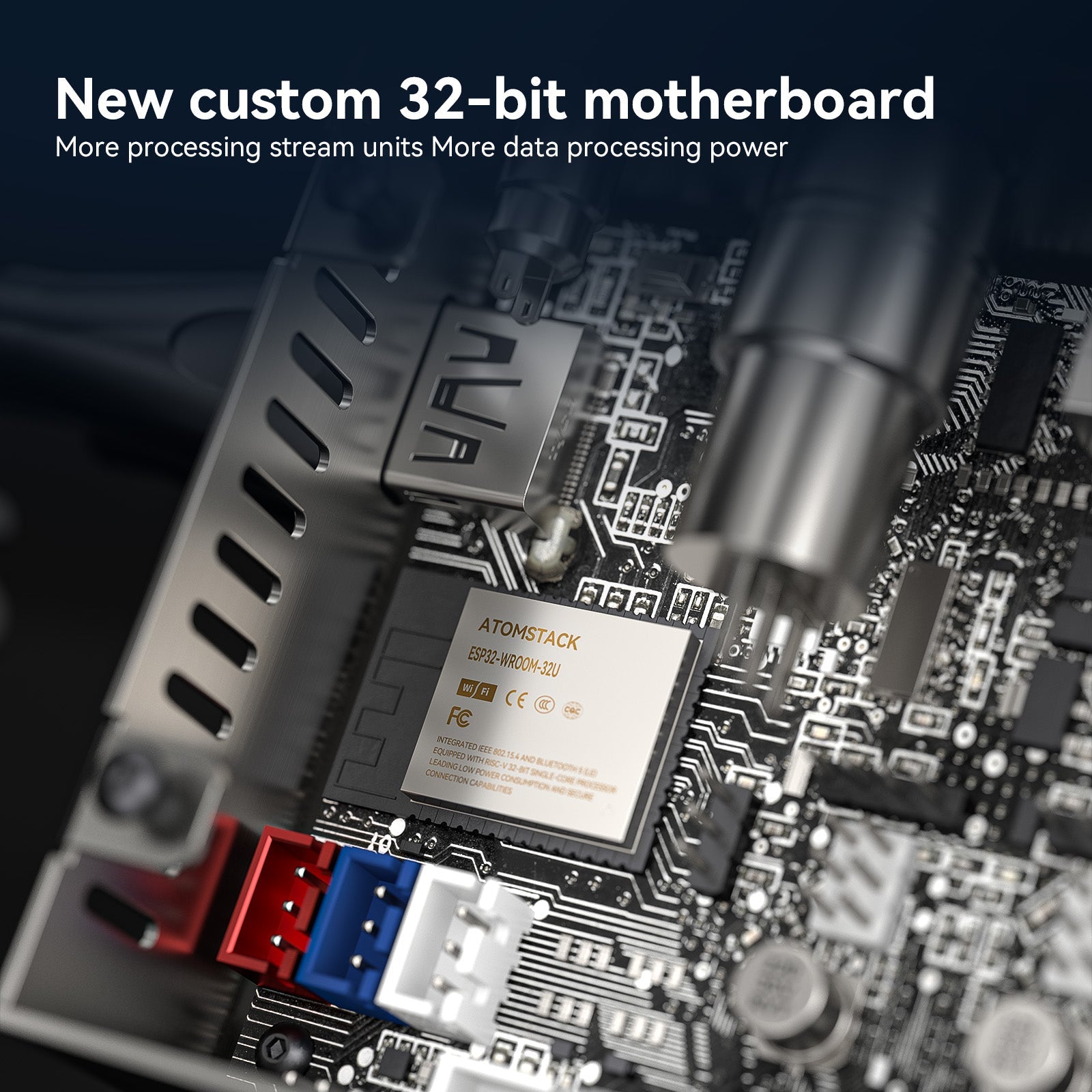

Upgrade Atomstack self-developed



32-bit motherboard

Built in 256-bit color gradient map, making the carving work more refined and with higher contrast, making your carving not only black.

Upgrade compressed spot---coupling technology

 The focus area of ultra fine laser is reduced to 0.1 * 0.1mm, and high-density laser can easily cut thick wooden boards and black acrylic; It can directly carve mirror stainless steel metal, ceramics, and glass, and the carving and cutting speed is 40% faster than 30W, comparable to the cutting effect of 80W CO2 laser engraving machine.

48W laser machine V.S  80W CO2 laser machine

48W laser machine   80W CO2 laser machine

Weight:

10.5kg

300kg

Cutting thickness:

20mm basswood plywood

 22mm basswood plywood

Appearance size:

660*600*240mm

660*600*240mm

Price:

 Cheaper

 More expensive

Laser module lifetime:

15000H

2000H

Safety protection

Equipped with an emergency stop button, the machine can be stopped at any time in case of unexpected situations, and equipped with a reset switch and limit switch engraving for safer operation

Product standard F30 Pro upgraded air kit

Equipped with standard air assist, the cutting ability has been greatly improved, while the cutting accuracy and quality can also be greatly optimized, making the Atomstack A40Pro a truly professional laser cutting machine.


Wide compatibility

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP/Win 7/Win 8/XP/Win 10, and also support the MAc system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Scalable engraving size

The modular design of the body mechanism allows for a super large engraving size of 850 * 400mm by simply replacing the Y-axis frame components

Standard size
Y-axis extension size
AE85 Expansion Kit

Product Specifications

Model

ATOMSTACK A40 Pro

ATOMSTACK Maker A30 Pro

ATOMSTACK A20 Pro

Basic Introduction
Color Blue Blue Blue
Working area 400*400mm 400*400mm 400*400mm
Product size 660*600*240 mm 237*660*568 mm 237*660*568 mm
Accessories F30 air assist kit F30 Pro air assist kit F30 Pro air assist kit
Reset switch Yes Yes Yes
Emergency stop button Yes Yes Yes
Offline engraving Yes Yes Yes
Connection USB connection, TF card USB connection, TF card USB connection, TF card
Input Voltage AC100-240V, 50/60Hz AC100-240V, 50/60Hz AC100-240V, 50/60Hz
Output Voltage DC24V, 8.5A DC24V, 6A DC24V, 5A
Laser type Diode laser Diode laser Diode laser
Performance and System
Engraving Materials
Wood, bamboo, cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plated and lacquered layers of metal, 304 mirror stainless steel, glass, ceramics, cotton, slate
Wood, bamboo, cardboard, plastic, leather, PCB board,aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirror stainless stell, glass, ceramics, cotton cloth, slate
Wood,bamboo,cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plated and lacquered layers of metal, 304 mirror stainless stell, glass, ceramics, cotton, slate
Cutting Materials
Cardboard, non-woven fabric, wood panels, Black acrylic, certain thin plastic sheets, sponge
Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge
Cardboard, non-woven fabric, wood panels, acrylic, certain thin plastic sheets, sponge
Laser protective cover
Protect the user's eyes and prevent pets from grabbing the laser spot
Protect the user's eyes and prevent pets from grabbing the laser spot
Protect the user's eyes and prevent pets from grabbing the laser spot
Machine Power 210W 160W 130W
Laser Power 180W 120W 90W
Laser Output Power 40-48W 33-36W 20-21W
Engraving accuracy 0.01mm 0.01mm 0.01mm
Foucs mode Fixed focus Fixed focus Fixed focus
Operating software LaserGRBL, LightBurn LaserGRBL, LightBurn LaserGRBL, LightBurn
Operating system NC, BMP, JPG, PNG, DXF NC, BMP, JPG, PNG, DXF NC, BMP, JPG, PNG, DXF
